ZETA THAI TYRES

Home > Tyres > ZETA THAI > TBR

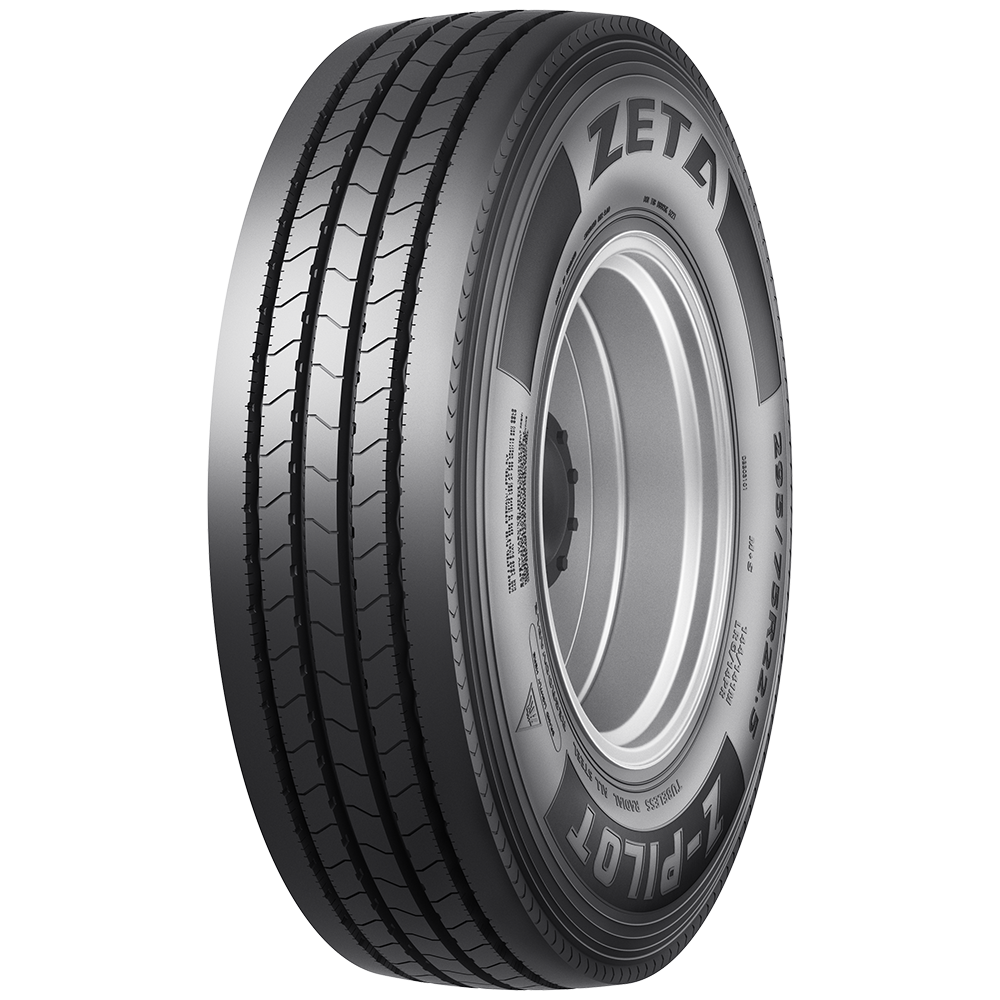

Z-PILOT
Z-PILOT
Characteristics

Small horizontal sipes oprovide good anti-slip performance.

The wide shoulder design increases the rigidity of the tire shoulder and improves the wear resistance of the tire.

The rubber bumps at the bottom of the groove and the S-shaped grooves effectively improve the self-cleaning property of the tire.

Small grooves on the edges of the blocks help improve the traction performance of the tire.

11R22.5
  • Loading Index148/145M
  • Ply Rating16PR
  • Standard Rim8.25
  • Tread Depth(mm)14
  • Tread Depth(32nds)17.6
  • Section Width(mm)279
  • Total Width220
  • Overall Diameter(mm)1051
  • Single(kg)3150
  • Single(lbs)6940
  • Dual(kg)2900
  • Dual(lbs)6390
  • Pressure(kPa)850
  • Pressure(psi)123
11R24.5
  • Loading Index149/146M
  • Ply Rating16PR
  • Standard Rim8.25
  • Tread Depth(mm)14
  • Tread Depth(32nds)17.6
  • Section Width(mm)279
  • Total Width220
  • Overall Diameter(mm)1100
  • Single(kg)3250
  • Single(lbs)7160
  • Dual(kg)3000
  • Dual(lbs)6610
  • Pressure(kPa)720
  • Pressure(psi)105
295/75R22.5
  • Loading Index144/141M
  • Ply Rating14PR
  • Standard Rim9
  • Tread Depth(mm)14
  • Tread Depth(32nds)17.6
  • Section Width(mm)297
  • Total Width226
  • Overall Diameter(mm)1031
  • Single(kg)2800
  • Single(lbs)6170
  • Dual(kg)2575
  • Dual(lbs)5675
  • Pressure(kPa)760
  • Pressure(psi)110
