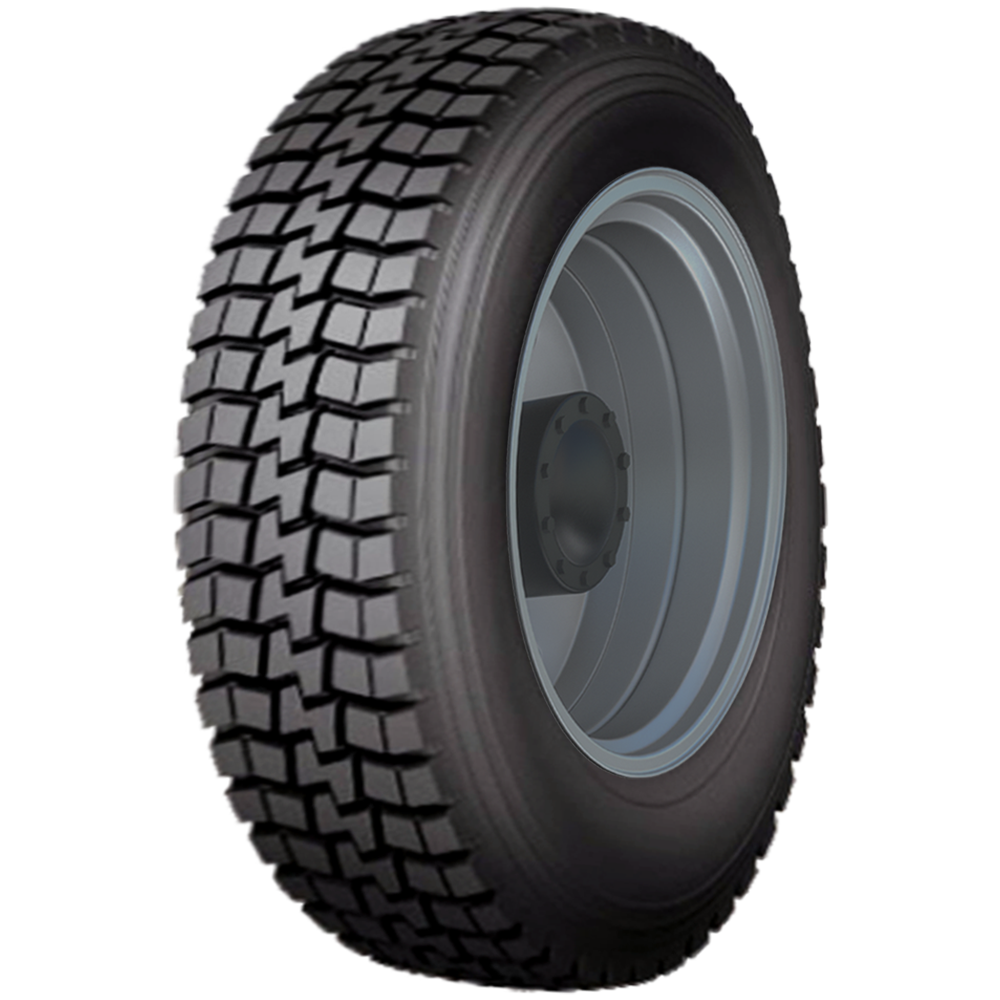

DR528
Characteristics
Drive wheel, for on/off road using;
Suitable for mixed road and relatively poor road conditioin;
Great grip abiltiy and excellent traction character;
Excellent loading capacity and anti-puncture performance.
- 9.5R17.5
-
- Loading Index143/141M
- Ply Rating18
- Standard Rim6.75
- Tread Depth(mm)14.5
- Section Width(mm)240
- Overall Diameter(mm)842
- Max Load(kg)2725/2575
- Max Load(lbs)6005/5675
- Pressure(kPa)875
- Pressure(psi)125
- 215/75R17.5
-
- Loading Index135/133J
- Ply Rating18
- Standard Rim6.00
- Tread Depth(mm)14.5
- Section Width(mm)211
- Overall Diameter(mm)767
- Max Load(kg)2180/2060
- Max Load(lbs)4805/4540
- Pressure(kPa)850
- Pressure(psi)125
- 235/75R17.5
-
- Loading Index143/141J
- Ply Rating16
- Standard Rim6.75
- Tread Depth(mm)14.0
- Section Width(mm)233
- Overall Diameter(mm)803
- Max Load(kg)2725/2575
- Max Load(lbs)6005/5675
- Pressure(kPa)850
- Pressure(psi)125
- 275/70R22.5
-
- Loading Index148/145L
- Ply Rating18
- Standard Rim8.25
- Tread Depth(mm)21.0
- Section Width(mm)276
- Overall Diameter(mm)958
- Max Load(kg)3150/2900
- Max Load(lbs)6940/6395
- Pressure(kPa)900
- Pressure(psi)130
- 11R22.5
-
- Loading Index148/145M
- Ply Rating16
- Standard Rim8.25
- Tread Depth(mm)22.0
- Section Width(mm)279
- Overall Diameter(mm)1054
- Max Load(kg)3150/2900
- Max Load(lbs)6944/6393
- Pressure(kPa)830
- Pressure(psi)120
