PACE TYRES

Home > Tyres > PACE > TBR
PCRTBR

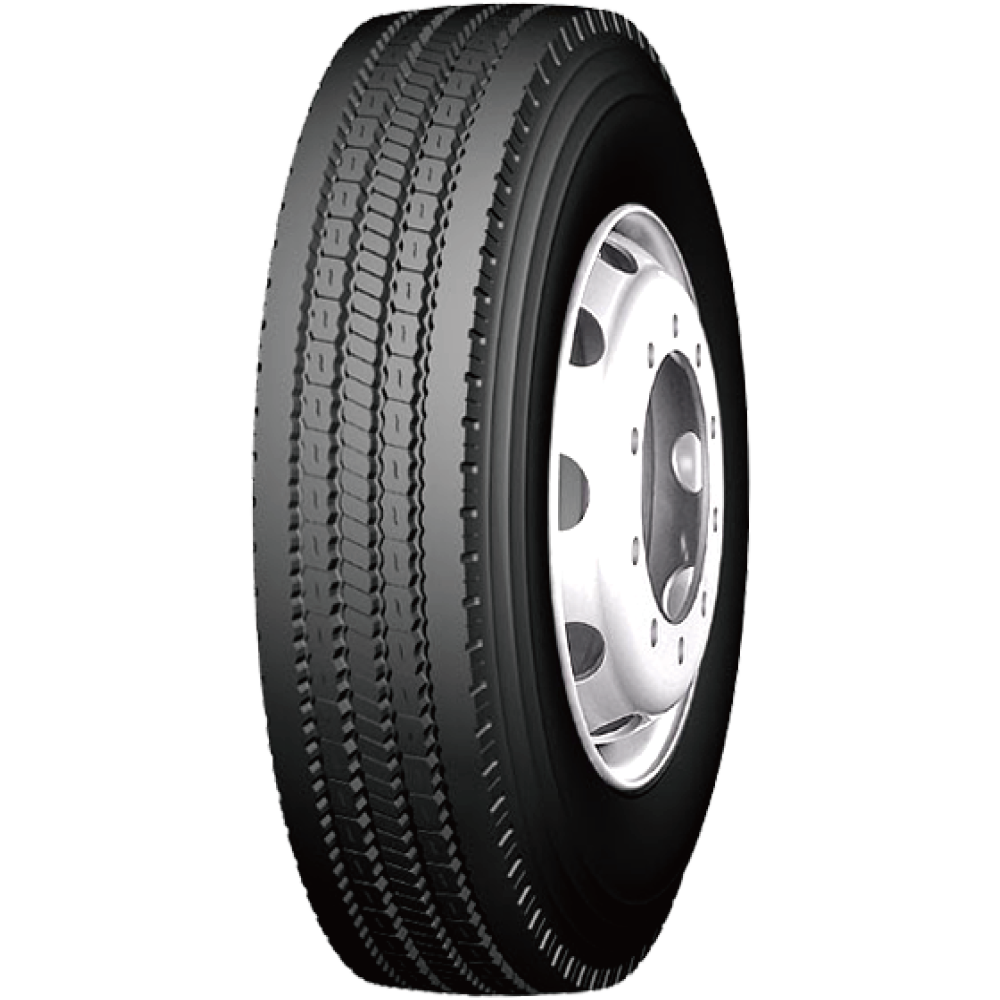

PM166

PM166

Characteristics

5-rib tread design with special compounds enhances even wear, traction in long haul steer axle position

Platform rock ejectors prevent stone drilling and stone retention to improve casing retreadibility and durability

Features multiple sipes design to enhance even wear, traction in long haul steer axle positions

6.50R16
  • Loading Index110/105L
  • Ply Rating12
  • Standard Rim5.50F
  • Tread Depth(mm)10
  • Tread Depth(32nds)12.60
  • Total Width180
  • Overall Diameter(mm)750
  • Single(kg)1060
  • Dual(kg)925
  • Pressure(kPa)670
7.00R16
  • Loading Index118/114L
  • Ply Rating14
  • Standard Rim5.50F
  • Tread Depth(mm)10.5
  • Tread Depth(32nds)13.23
  • Total Width200
  • Overall Diameter(mm)775
  • Single(kg)1320
  • Dual(kg)1180
  • Pressure(kPa)770
7.50R16
  • Loading Index122/118L
  • Ply Rating14
  • Standard Rim6.00G
  • Tread Depth(mm)12.5
  • Tread Depth(32nds)15.75
  • Total Width215
  • Overall Diameter(mm)805
  • Single(kg)1500
  • Dual(kg)1320
  • Pressure(kPa)770
825R16
  • Loading Index128/124L
  • Ply Rating16
  • Standard Rim6.50H
  • Tread Depth(mm)12.5
  • Tread Depth(32nds)16.00
  • Total Width235
  • Overall Diameter(mm)855
  • Single(kg)1800
  • Dual(kg)1600
  • Pressure(kPa)670
7.50R20
  • Loading Index130/128L
  • Ply Rating14
  • Standard Rim6.0
  • Tread Depth(mm)12.5
  • Tread Depth(32nds)15.75
  • Total Width213
  • Overall Diameter(mm)935
  • Single(kg)1900
  • Dual(kg)1800
  • Pressure(kPa)830
