PACE TYRES

Home > Tyres > PACE > TBR
PCRTBR

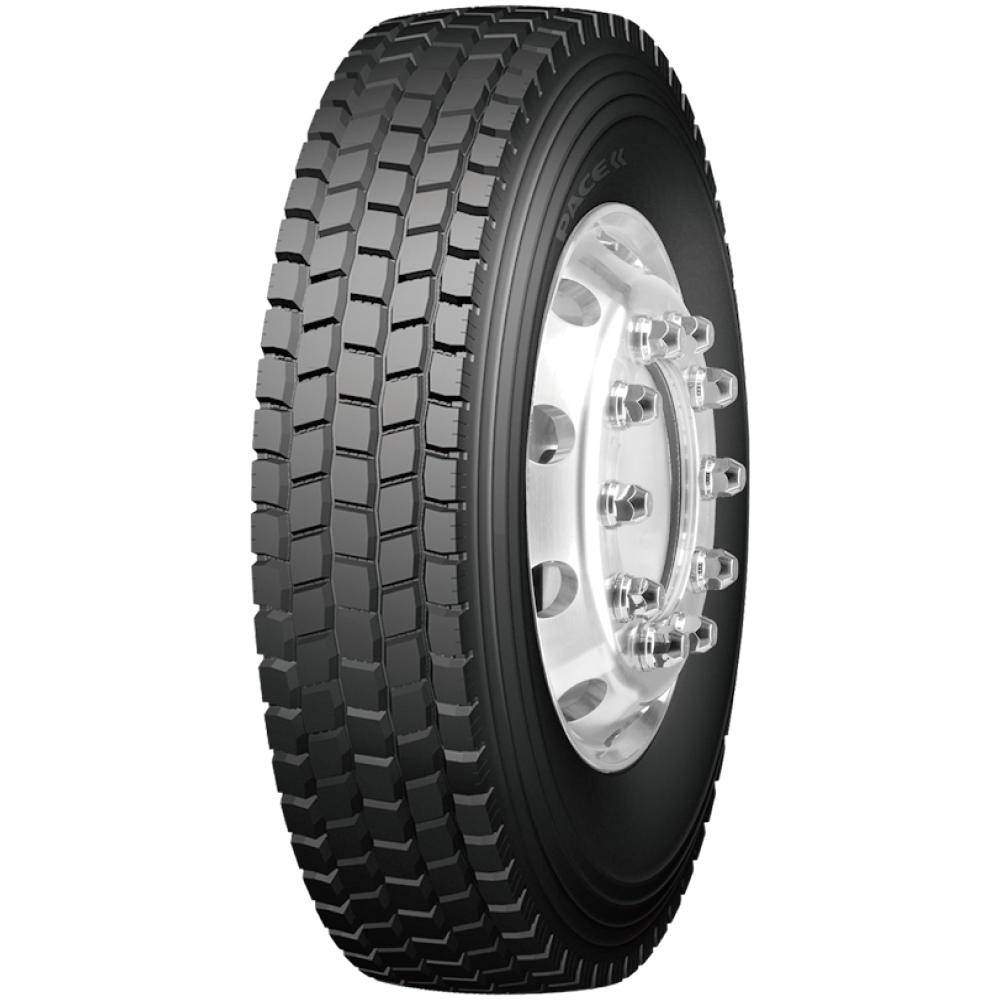

PM511

PM511

Characteristics

Innovative open shoulder tread design provides outstanding traction and promotes even wear

28/32" original tread depth for excellent mileage in long and short haul applications

Heavy duty casing for stability and promotion of retreading

10.00R20
  • Loading Index149/146K
  • Ply Rating18
  • Standard Rim7.5
  • Tread Depth(mm)18
  • Tread Depth(32nds)22.68
  • Total Width278
  • Overall Diameter(mm)1054
  • Single(kg)3250
  • Dual(kg)3000
  • Pressure(kPa)930
11.00R20
  • Loading Index152/149K
  • Ply Rating18
  • Standard Rim8.0
  • Tread Depth(mm)20
  • Tread Depth(32nds)25.20
  • Total Width293
  • Overall Diameter(mm)1085
  • Single(kg)3350
  • Dual(kg)3075
  • Pressure(kPa)830
  • R.RD
  • W.GB
  • E.N75
12.00R20
  • Loading Index156/153K
  • Ply Rating18
  • Standard Rim8.5
  • Tread Depth(mm)20
  • Tread Depth(32nds)25.20
  • Total Width315
  • Overall Diameter(mm)1125
  • Single(kg)4000
  • Dual(kg)3650
  • Pressure(kPa)930
295/80R22.5
  • Loading Index152/149K
  • Ply Rating18
  • Standard Rim9.00
  • Tread Depth(mm)22
  • Tread Depth(32nds)27.72
  • Total Width298
  • Overall Diameter(mm)1050
  • Single(kg)3550
  • Dual(kg)3250
  • Pressure(kPa)900
  • R.RD
  • W.GB
  • E.N75
315/80R22.5
  • Loading Index156/150K
  • Ply Rating20
  • Standard Rim9.00
  • Tread Depth(mm)22
  • Tread Depth(32nds)27.72
  • Total Width312
  • Overall Diameter(mm)1082
  • Single(kg)4000
  • Dual(kg)3350
  • Pressure(kPa)860
  • R.RD
  • W.GB
  • E.N75
