PCRTBR

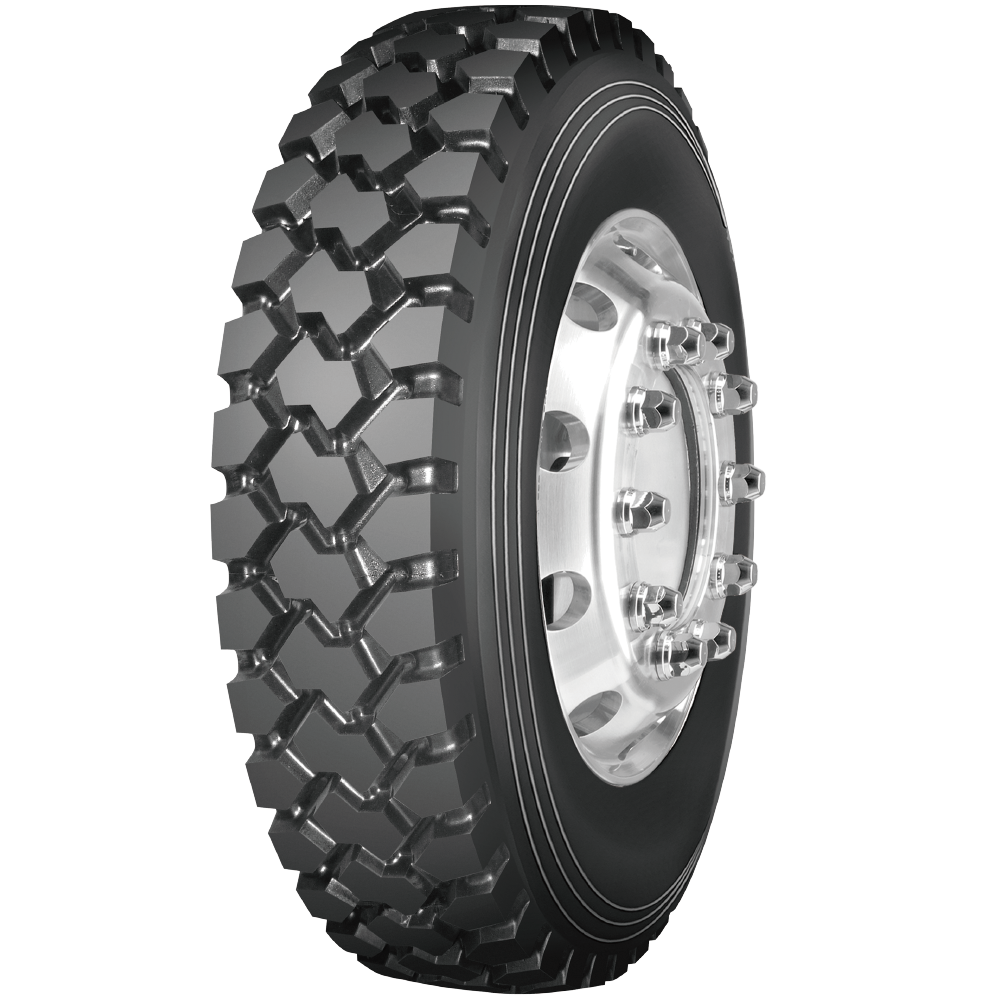

PM305

PM305

Characteristics

Chip, cut and abrasion resistant tread compounds

Max. 32/32" tread depth promotes increased mileage and long service life

Aggressive tread offers excellent traction for severe off-highway use; no on-highway speed restrictions

11R22.5
  • Loading Index148/145J
  • Ply Rating16
  • Standard Rim8.25
  • Tread Depth(mm)25
  • Tread Depth(32nds)31.50
  • Total Width279
  • Overall Diameter(mm)1065
  • Single(kg)3150
  • Dual(kg)2900
  • Pressure(kPa)850
12.00R24
  • Loading Index158/155F
  • Ply Rating18
  • Standard Rim8.5
  • Tread Depth(mm)31.5
  • Tread Depth(32nds)39.69
  • Total Width315
  • Overall Diameter(mm)1238
  • Single(kg)4250
  • Dual(kg)3875
  • Pressure(kPa)830
295/80R22.5
  • Loading Index152/149J
  • Ply Rating18
  • Standard Rim9.00
  • Tread Depth(mm)22
  • Tread Depth(32nds)27.72
  • Total Width298
  • Overall Diameter(mm)1050
  • Single(kg)3550
  • Dual(kg)3250
  • Pressure(kPa)900
  • R.RC
  • W.GB
  • E.N75
315/80R22.5
  • Loading Index156/150J
  • Ply Rating20
  • Standard Rim9.00
  • Tread Depth(mm)22
  • Tread Depth(32nds)27.72
  • Total Width312
  • Overall Diameter(mm)1082
  • Single(kg)4000
  • Dual(kg)3350
  • Pressure(kPa)860
  • R.RC
  • W.GB
  • E.N75
