PACE TYRES

Home > Tyres > PACE > TBR
PCRTBR

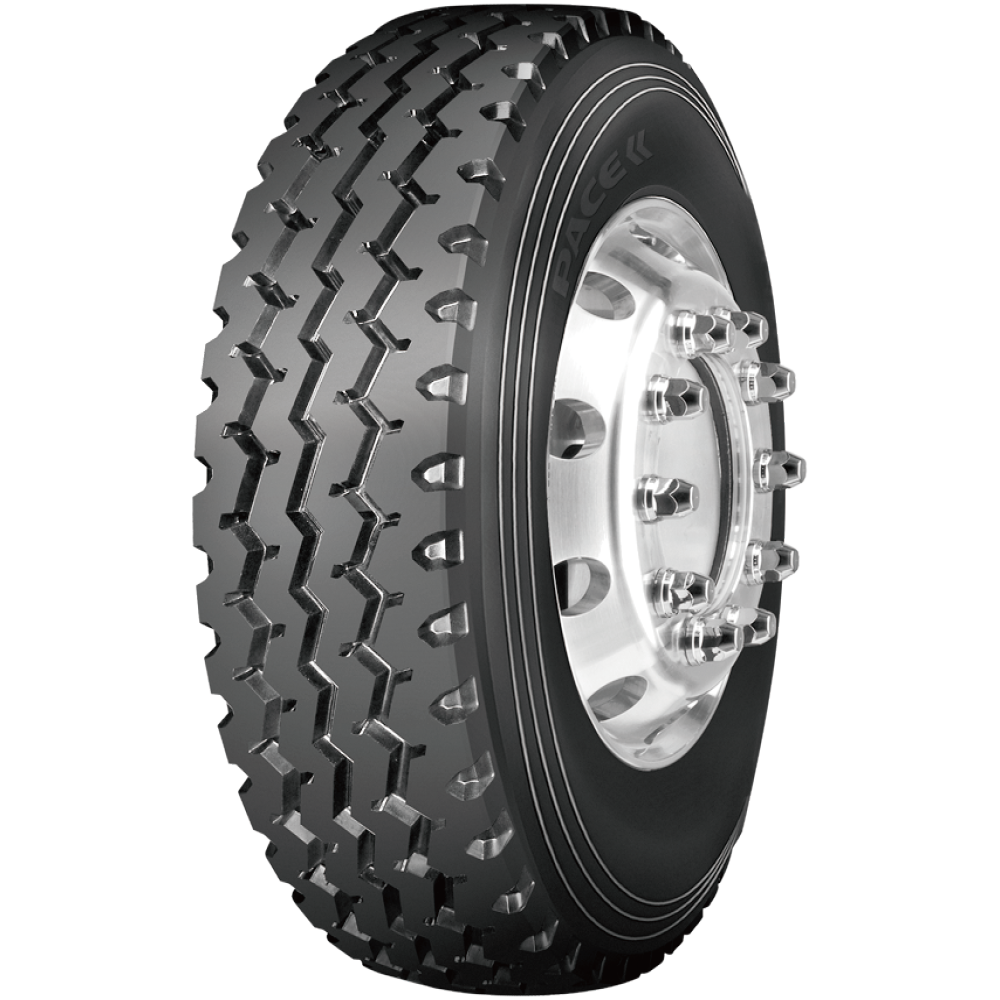

PM201

PM201

Characteristics

Strong all-position tread pattern designed for multiple on and off highway use

Cut, chip and tear resistant tread compounds and heavy duty casing construction for excellent performance in tough applications

High load carrying capacity for heavy load applications

12.00R20
  • Loading Index154/151K
  • Ply Rating18
  • Standard Rim8.5
  • Tread Depth(mm)17
  • Tread Depth(32nds)21.42
  • Total Width315
  • Overall Diameter(mm)1125
  • Single(kg)3750
  • Dual(kg)3450
  • Pressure(kPa)830
  • R.RC
  • W.GB
  • E.N71
12.00R24
  • Loading Index160/157K
  • Ply Rating20
  • Standard Rim8.5
  • Tread Depth(mm)17
  • Tread Depth(32nds)21.42
  • Total Width315
  • Overall Diameter(mm)1226
  • Single(kg)4500
  • Dual(kg)4125
  • Pressure(kPa)900
  • R.RC
  • W.GB
  • E.N71
13R22.5
  • Loading Index154/151M
  • Ply Rating20
  • Standard Rim9.00
  • Tread Depth(mm)20
  • Tread Depth(32nds)25.20
  • Total Width320
  • Overall Diameter(mm)1124
  • Single(kg)3750
  • Dual(kg)3450
  • Pressure(kPa)830
  • R.RC
  • W.GB
  • E.N71
315/80R22.5
  • Loading Index156/150M
  • Ply Rating20
  • Standard Rim9.00
  • Tread Depth(mm)16.5
  • Tread Depth(32nds)20.79
  • Total Width312
  • Overall Diameter(mm)1076
  • Single(kg)4000
  • Dual(kg)3350
  • Pressure(kPa)860
  • R.RC
  • W.GB
  • E.N71
