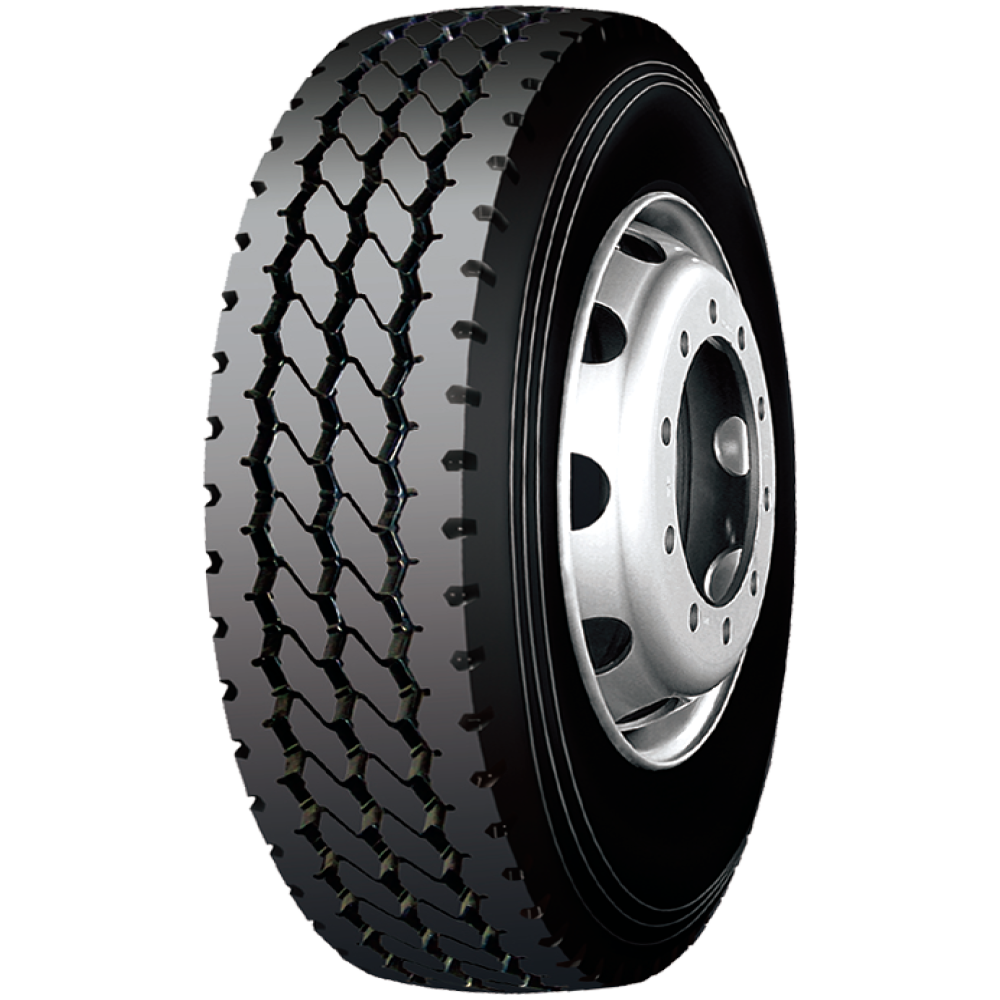

PM519

PM519

Characteristics

A highway drive-position tyre with deep tread for high mileage and superior traction

Advanced tread compounds and internal construction provides low rolling resistance and longer mileage

Cut, chip and tear resistant tread compounds and heavy duty casing construction for excellent performance in tough applications

7.50R16
  • Loading Index122/118L
  • Ply Rating14
  • Standard Rim6.00G
  • Tread Depth(mm)14
  • Tread Depth(32nds)17.64
  • Total Width215
  • Overall Diameter(mm)805
  • Single(kg)1500
  • Dual(kg)1320
  • Pressure(kPa)770
  • R.RC
  • W.GB
  • E.N71
8.25R16
  • Loading Index128/124L
  • Ply Rating16
  • Standard Rim6.5H
  • Tread Depth(mm)14
  • Tread Depth(32nds)17.64
  • Total Width235
  • Overall Diameter(mm)855
  • Single(kg)1700
  • Dual(kg)1600
  • Pressure(kPa)670
  • R.RC
  • W.GB
  • E.N71
11R22.5
  • Loading Index148/145L
  • Ply Rating16
  • Standard Rim8.25
  • Tread Depth(mm)15.5
  • Tread Depth(32nds)19.53
  • Total Width279
  • Overall Diameter(mm)1065
  • Single(kg)3150
  • Dual(kg)2900
  • Pressure(kPa)850
  • R.RC
  • W.GB
  • E.N71
11R24.5
  • Loading Index149/146L
  • Ply Rating16
  • Standard Rim8.25
  • Tread Depth(mm)18
  • Tread Depth(32nds)22.68
  • Total Width279
  • Overall Diameter(mm)1116
  • Single(kg)3250
  • Dual(kg)3000
  • Pressure(kPa)830
12R22.5
  • Loading Index152/149L
  • Ply Rating18
  • Standard Rim9.00
  • Tread Depth(mm)18
  • Tread Depth(32nds)22.68
  • Total Width300
  • Overall Diameter(mm)1085
  • Single(kg)3550
  • Dual(kg)3250
  • Pressure(kPa)930
  • R.RC
  • W.GB
  • E.N71
13R22.5
  • Loading Index154/151L
  • Ply Rating18
  • Standard Rim9.00
  • Tread Depth(mm)18
  • Tread Depth(32nds)22.68
  • Total Width320
  • Overall Diameter(mm)1124
  • Single(kg)3750
  • Dual(kg)3450
  • Pressure(kPa)830
  • R.RC
  • W.GB
  • E.N71
295/80R22.5
  • Loading Index152/149L
  • Ply Rating18
  • Standard Rim9.00
  • Tread Depth(mm)16
  • Tread Depth(32nds)20.16
  • Total Width298
  • Overall Diameter(mm)1050
  • Single(kg)3550
  • Dual(kg)3250
  • Pressure(kPa)900
  • R.RC
  • W.GB
  • E.N71
315/80R22.5
  • Loading Index156/150L
  • Ply Rating20
  • Standard Rim9.00
  • Tread Depth(mm)18
  • Tread Depth(32nds)22.68
  • Total Width312
  • Overall Diameter(mm)1082
  • Single(kg)4000
  • Dual(kg)3350
  • Pressure(kPa)860
  • R.RC
  • W.GB
  • E.N71
